ComfyUI Detailer/ADetailer Workflow
If you're having ANY issues with this workflow, please include the error log from your console when writing a comment here on this page. Chances are 99.98% i can help you with your issue - but i need the error log. And me not having to ask for it first will save you potentially hours. Chances are also high the solution to your problem is already documented in the FAQ here.
You can now support me on my Ko-Fi if you have too much money (✿◡‿◡)
Requirements for each version are listed below or can be found inside a Note in the Workflow itself.
Because of the many connections among the nodes, I highly recommend turning off the link visibility by clicking the "Toggle Link visibility" (Eye icon) in the bottom right of ComfyUI.
Description
I originally came from A1111 WebUI to ComfyUI and, honestly, a lot of things felt way more complicated than they needed to be. I couldn’t find workflows that were both visually pleasing and showed me all the important options without requiring a deep understanding of every little thing in ComfyUI.
Over a few months I learned the ins and outs of Comfy and built my own very barebones, simple workflow (v1) with one main goal: streamline the process and make it visually understandable. I released it here thinking it might help others who also want to make the jump from A1111 to Comfy.
Over the last year I’ve kept adding more and more features as people started using the workflow and requesting things. The workflow has grown a lot, but I’m still trying to keep the same ease-of-use that this whole journey started with. The main goal is still the same: give you a lot of powerful options in a layout that’s as clean, readable, and as user-friendly as ComfyUI will allow.
At this point I feel like I have a pretty solid understanding of how Comfy works, and I’ve even created my own custom nodes to add missing functionality so this workflow could match the ideas I had for it. I try to hide as much of the technical complexity as possible — but if you’re ever curious or confused about anything, please feel free to ask!
Thanks to all of your suggestions, the workflow now includes features like:
Single-image and batch generation
Automatic detailers for specific body parts
Upscaling
v-pred models
LoRAs
ControlNet
IPAdapter
Hires fix / refiner
Manual inpainting
Thank you to every single person who uses this workflow, donates Buzz, or shares images on this page.
I really appreciate you taking those extra steps to support and promote the project. ♥️
Requirements
v4.4 and above require ComfyUI version 0.3.51 or above and also need the frontend to be AT LEAST 1.24.3 or later.
v5.1 - Full List
v5.0 - Full List
v4.4 - Additions to v4.3 (IMG2IMG Only)
Otherwise same as v4-4.3 below
v4.2-4.3 - Additions to v4.1
Otherwise same as v4.1 (incl. v4) below
v4.1 - Additions to v4 (IMG2IMG Only)
Otherwise same as v4 below
v4 - Full List
v3 - v3.2 - Full List
v2.2 - Additions to v2
Otherwise same Custom-Nodes as v2 but you can remove Comfyui-ergouzi-Nodes
v2 - Full List
v1 - Full List
How to use
Since all of the different versions work differently, you should check the "How to use" Node inside of the Workflow itself.
I promise that once you read the explanation of the workflow itself, it'll click and it will be a simple plug and play experience.
It's the simplest I could've made it coming from someone who's only started using ComfyUI 4-5 months ago and had been exclusively an A1111WebUI user before.
When were what functionalitys added?
Starting from v3, ControlNet is included.
Starting from v4, IPAdapter is included.
Starting from v4.3, HiRes Fix and Dynamic prompts(wildcards) is included.
Starting from v4.4, Refiner is included.
Starting from v5.0, Manual Inpainting is included.
Any errors during execution?
If you're running into any errors during the execution of the workflow, please check the FAQ of my Guide first. The guide is written for the IMG2IMG Workflow but when issues arise that people run into frequently i'll add the solutions and what's hapenning to that FAQ section.
If you can't find the problem you're running into there - feel free to write me a comment on the model page so that i can help you and other people might benefit from it as well.
Feedback
I'd love to see your feedback or opinion on the workflow.
This is the first workflow I have ever created myself from scratch and I'd love to hear what you think of it.
If you want to do me a huge favor, you can post your results on this Model page.
I'll make sure to send some buzz your way!
Description
Implementation of IPAdapter for Style & Concept (Optional)
CFG, Sampler, Scheduler & Steps now directly affect detailer settings as well
Body parts now have their own denoise slider for better detailing
low denoise value = keep form, inpaint area according to original but with prompt as guide (ideal for most detailing, i'd recommend 0.2-0.5 as values)
mid-high denoise value = overwrite form, inpaint area according to prompt while ignoring original content
Manual & Recommendations + Requirements overhaul
Reorganization of Backend Logic for better state handling
Compact Group Nodes for ControlNet & IPAdapter Models
Fixed clip inheritance amongst optional Detailer LoRA's & Optional Detailer prompts
Debug section now shows full prompt preview at all times
FAQ
Comments (18)
Hello again. I am having trouble with the "workflowIPadapter Models" node. I downloaded the IP adapter model, but the "ipadapter" folder was not there. I created a folder with the same name. I downloaded the custom nodes as well, and the clip model. "workflowIPadapter Models" is the only one that doesn't work for me, and I don't see any missing nodes in my comfyui manager. Do you know which custom node it belongs to, or is the issue resulting from the missing ipadapter folder? Thank you!
I was using the ver 4.0 TXT2IMG and got into a problem when trying adetailer.
The generating part is fine, but when I try adetailer, only the top most one works on the image.
I checked the console, it also only have two pass, one for generating the original pic, and another one for one detailer pass.
I turned 3 detailer on, but only whichever one on the top would work.
Hey!, i just installed all the modules and got the workflow to actually show up, but can't seem to generate anything, VAE box gets a red outline and nothing ever generates, any idea why?, theres also red crosses on the detection models!, im pretty new on ComfyUI and i dont really know how to fix it myself, since reassigning the vae connections doesn't work either.
Hey @vhsk2005560,
you can ignore the red crosses on the detection models.
It basically just means that the detection model you use does not use a segm_detector.
If you have a red outline on the vae box that usually means that you have not selected a vae.
The default VAE for sdxl is usually included in most comfyui installations. If you have the Comfy manager installed you can just open the "Model Manager" and search for "sdxl vae" and download it.
Otherwise you can also download the sdxl_vae here: https://huggingface.co/stabilityai/sdxl-vae/blob/main/sdxl_vae.safetensors
just throw it into your /models/vae folder and you should be ready to generate!
@vslinx Thank you so much!, and sorry for the late reply, but now i have a new problem... workflowPAdapter Models and WorkflowControlNet Models have a red outline! When i try to generate this pops up: Cannot execute because a node is missing the class_type property.: Node ID '#253'
@vhsk2005560 that is not how it should work.
You prompt what you want to generate and depending on the detailers you‘ve picked it‘ll inpaint these areas again. And then they‘ll be placed back into the picture. The full image overview is in the upper area under „Before & After“.
@vslinx maybe i need to set up something first?, tune or download different detailers?
Thanks for the workflow, choom, greatly appreciate it (especially for someone who used Comfy just for Wan until now). Out of curiosity: is there a way to make Comfy save the image when the generation's done without me checking them manually with the 4 outputs preview? Or at least to remove the "timer".
Heya @The_rule_of_Thetra,
i'm glad you enjoy the workflow! 🥰
Depends on what you want to do! The 4 images you see in the output preview is the image before upscaling and detailing etc.

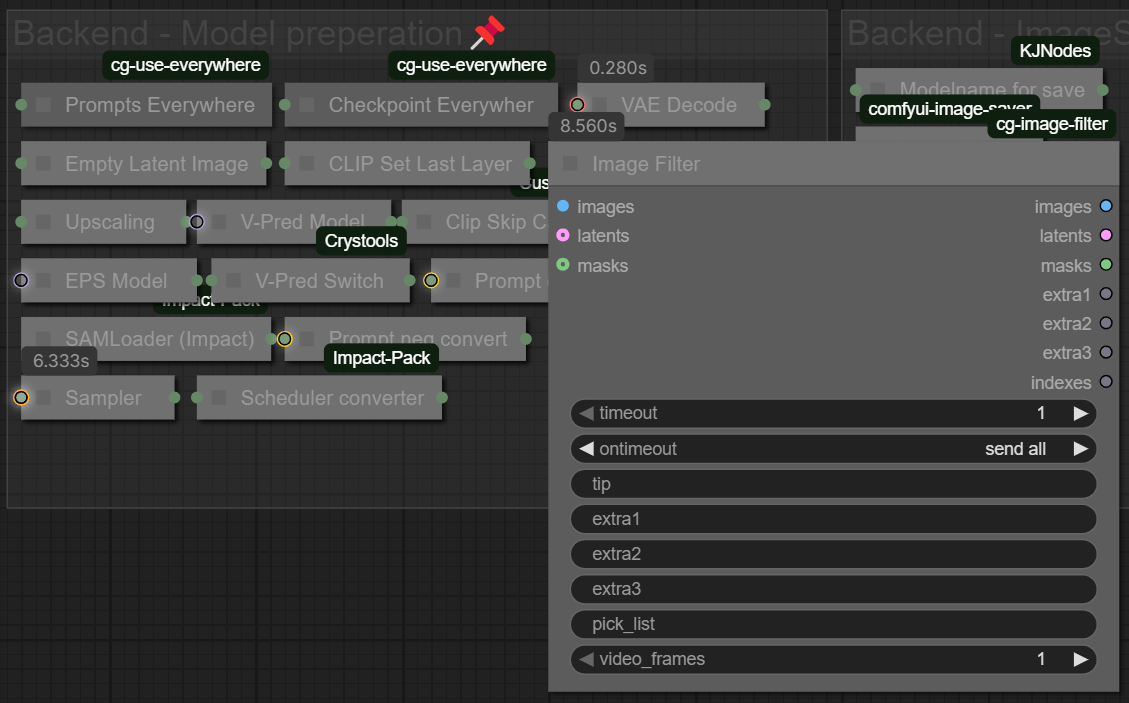

If you do not want to have the decision process at all and simply want to forward all of the generated images into the upscaler/detailer or whatever else you have selected you can scroll down into the "Backend - Model preperation"-Group Node and open the "Image Filter"-Node there.
Then you can set the timeout to 1 second (or to a trillion if you don't want the countdown) and set the "ontimeout"-action to "send all" like this. This will always send all images in the batch directly to the next process after 1 sec of waiting, which is basically instantly. If you just want to save those previews you can obviously just turn off upscaling and the detailer's and then you'll save the previews right away.
If you only want to generate 1 image anyways and want to get rid of the whole selection process because of it you can set the Batch Size to 1 in the Sampler Settings, go to your Settings from ComfyUI(Cogwheel symbol bottom right) and then click on "Image Filter" on the left-side menu.
If you select "If all images are identical, autosend one" while you only have a batch size of 1 the image will automatically be forwarded to the next node's without ever showing the dialog.
If you dislike the whole concept of selecting which images to detail etc. you can also just delete the "Image filter" node from the screenshot of the first solution and the "VAE Decode"-Node will automatically connect to the upscaling node and with that the image-filter function will be completely removed! :D
I hope this helps 🫡♥️
Where can I find
workflowControlNet Models
workflowEnd quality prompt (Optional)
workflowStart quality prompt (Optional)
I downloaded all the nodes from the links in the workflow.
Hey @GesugaoDVA,
i know i have answered your comment before but i don't know if it either got deleted by civitai or got removed by a rollback when the site went into maintenance.
But this problem is usually resolved by making sure you have all the nodes installed, none of their imports are failed and by making sure you refresh the browser afterwards.
Some other users had this problem too and you can see the fix here:
https://civitai.com/models/1297813?dialog=commentThread&commentId=801058
Hi sir. I am noob in comfyUI. I have downloaded your workflow and installed all the custom nodes, but it still warn me missing Node Type "workflowEnd quality prompt (Optional)" and "workflowStart quality prompt (Optional)". How can i fix that? I'll really appreciate for your help!
heya @GigaRed,
The "workflowIPAdapter Models"-name comes from the group i've created.
Have you installed all the dependencies that are in the description?
If you have all the nodes installed all you have to do is refresh your browser page once for it to work. Check your console if you have any "(IMPORT FAILED)" statements before the custom_node packages, you might have to update some of your current nodes.
I really like this workflow and I wanna use it, but for some reason when I click run it just finishes in like 3 seconds and no image comes out...I've installed all the custom nodes and no red boxes are showing up so it's not like it gets stuck on a certain node. I don't even know what's going on with it at this point
hey @jirAIkei,
Sometimes comfyui is not throwing an error when the issue is a missing model, i've had that issue in the past and then the only solution is checking your console why nothing is happening.
From experience i'd say it's probably a Detailer model that you have not selected, please check if any of the node's in the "Detection Models"-Group have a red border, sadly comfyui doesn't throw an error message if only a model is missing. If that's not the case can you tell me what your console is saying where you've started comfyui?
@vslinx Nevermind I fixed it now ^^ sorry for taking up your time!
Leaving the solution here in case anyone else has this problem:
It was the image filter node that for some reason had pick_list_start set to 0. Now the workflow works as long as I set it to an actual number.
@jirAIkei thanks for providing the solution! :D
It might be an issue that's new because of updates comfyui components, i'll check it later and see if i can reproduce it and maybe release a new minor version then, thank you! ^^
@jirAIkei yeah like expected the issue was caused by a new update to the image-filter node that was released last week ^^
The solution is to actually right click the node and do "Fix node (recreate)" to fix the problem introduced with new variables for videos. With this you'll also get back the selection of images like intended.
I'll be pushing an update in a few minutes, thanks for bringing this to my attention.
